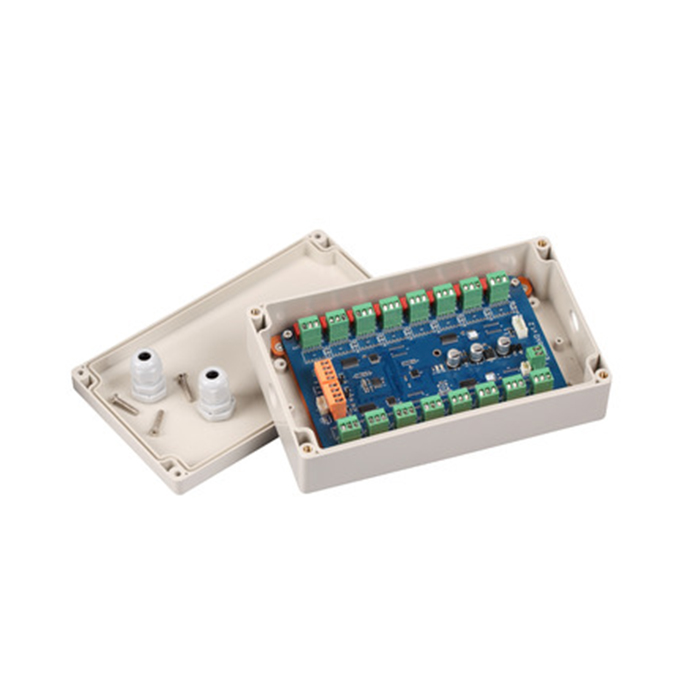

Name：EC01-16F
Model: EC01-16F
Introduce
Features
Support Philips RF card (NXP Philip chip S50 card)
Card reading distance: 3-5CM.
No additional software required, compatible with hotel door lock management software
16-floor control, set up bridging.
Support three management modes: any mode, floor mode and floor + time mode
Support specific floor functions
Support public floor function
Support record query: 990 records
Support fault automatic conversion: When the elevator controller fails, the elevator will automatically switch to any key mode
technical parameter
Power supply: 12VDC
Working current: 100mA
Card reader type: Mifare card (13.56MHZ)
Card reading distance: 3-5CM
Reading head size: 92mm x 63mmx 22mm
Working temperature -10~70 degree
Storage temperature: -25~100 degree
Working humidity: 5%~95%
